Handle Induction Heating Machine Hf-25kw

MOQ: 1
Price: 1000
Packaging Details: ply wooden box package
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Product Description
Detail Information
Model NO.:
HF-25KW
Application Range:
Heating, Soldering, Welding
Transport Package:
Export Wooden Box
Specification:
CE, SGS
Trademark:
ORD
Origin:
China
HS Code:
8514400090
Production Capacity:
100000set/Year
Supply Ability:
1000sets/month
Highlight:

25kw induction heating machine

,

high frequency induction heater

,

handle induction heater hf-25kw

Product Description

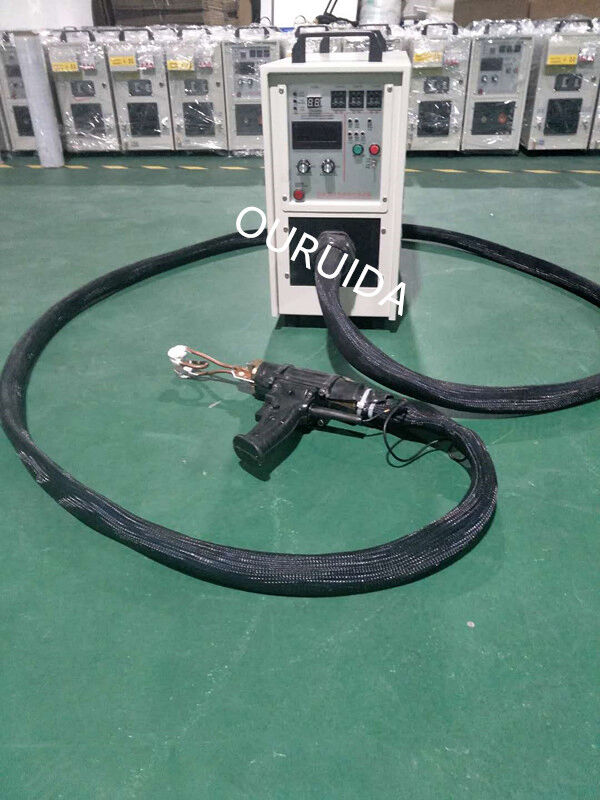

HF-25KW Induction Heating Machine
HF-25KW Handle Type High Frequency Induction Heating Machine
Key Features
  1. IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
  2. 100% Duty cycle, continuous working is allowed at maximum power output.
  3. Display of heating power and heating current and oscillating frequency;
  4. Simple to install, Installation can be done by unprofessional person very easily;
  5. Light weight
  6. Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
Technical Specifications
Type HF-25KW
Work power 3phase—380V(415V,440V,480V)50-60HZ
The range of operating voltage 340V-430V(370-480)V AC
Output power 25KW
Fluctuating frequency   30-80KHZ
Max Input Current 25A-28A
Timing (Heat time, Retain time , Cool time) 1-99S
The flow rate of cooling water  0.08-0.16 Mpa 9L/Min
Water temperature protection point   40ºC
Duty cycle 100%(40degree room temperature)
Weight 45Kg+5KG
Size 600*230*500MM

Product detail 1 Product detail 2
