High Frequency Induction Heater (HF-80KW)
  • name
  • name
  • name
  • name
  • name

High Frequency Induction Heater (HF-80KW)

MOQ: 1
Price: 3980
Detail Information
Product Description
Detail Information
Model NO.:
HF-80KW
Application:
Heating, Quenching, Forging, Melting, Welding
Power:
48kw
Frequency:
30-80kHz
Work Voltage:
220V, 380V, 400V, 415V,440V, 480V*3phase 50-60Hz
Input Current:
73A
Type:
IGBT
Transport Package:
Wooden Box
Specification:
CE, SGS, ISO
Trademark:
ORD
Origin:
China
HS Code:
8514400090
Production Capacity:
10, 000sets
Highlight:

80KW high frequency induction heater

,

industrial induction heating equipment

,

HF induction heater with warranty

Product Description

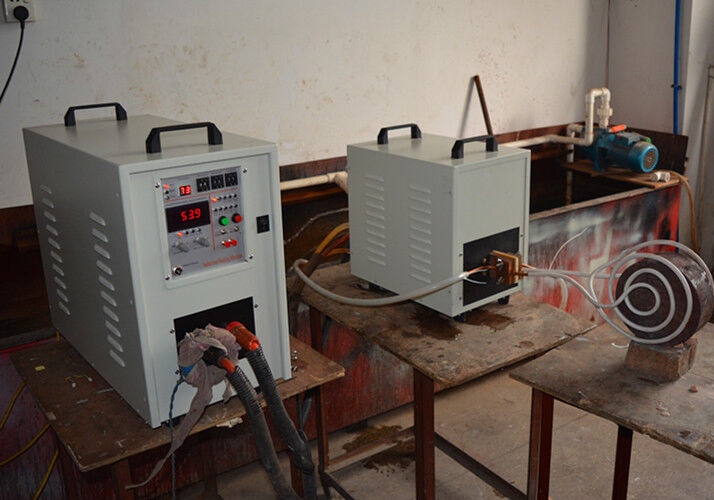

HF-80KW High Frequency Induction Heating Machine:
High Frequency Induction Heater (HF-80KW) 0

Advantage:
1 More than 22 years experience,stable and goods performance
2 CE certificated
3 Copperated with ZHOUDAFU, Matsushita,Foxconn, Media, Gree a6nd ZHIGAO Air conditioner.
4 Suitable  for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, can match better different length induction coil

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
7 Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;

High Frequency Induction Heater (HF-80KW) 1High Frequency Induction Heater (HF-80KW) 2
High Frequency Induction Heater (HF-80KW) 3

High Frequency Induction Heater (HF-80KW) 4
High Frequency Induction Heater (HF-80KW) 5
High Frequency Induction Heater (HF-80KW) 6

 Type HF-80AB
 Work Power  3*380v/415v/440v/480v  50-60hz
 The range of operating voltage  340-430V AC
 Output power  80KW
 Input current  73A
 Fluctuating frequency  30-80khz
 Timing (Heat time,Retain time,Cool time)  1-99S
 The flow rate of cooling water  0.15 Mpa 11L/Min
 Water temperature protection point  40centidegree
 Duty cycle  100% (40degree room temperature)
 Weight  Mainparts:55Kg    Transformer:51kg
 Size Main Parts:640*280*550MM
Transformer: 510*260*410MM
Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such
as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance
and operation guarantee.
High Frequency Induction Heater (HF-80KW) 7High Frequency Induction Heater (HF-80KW) 8
High Frequency Induction Heater (HF-80KW) 9High Frequency Induction Heater (HF-80KW) 10
