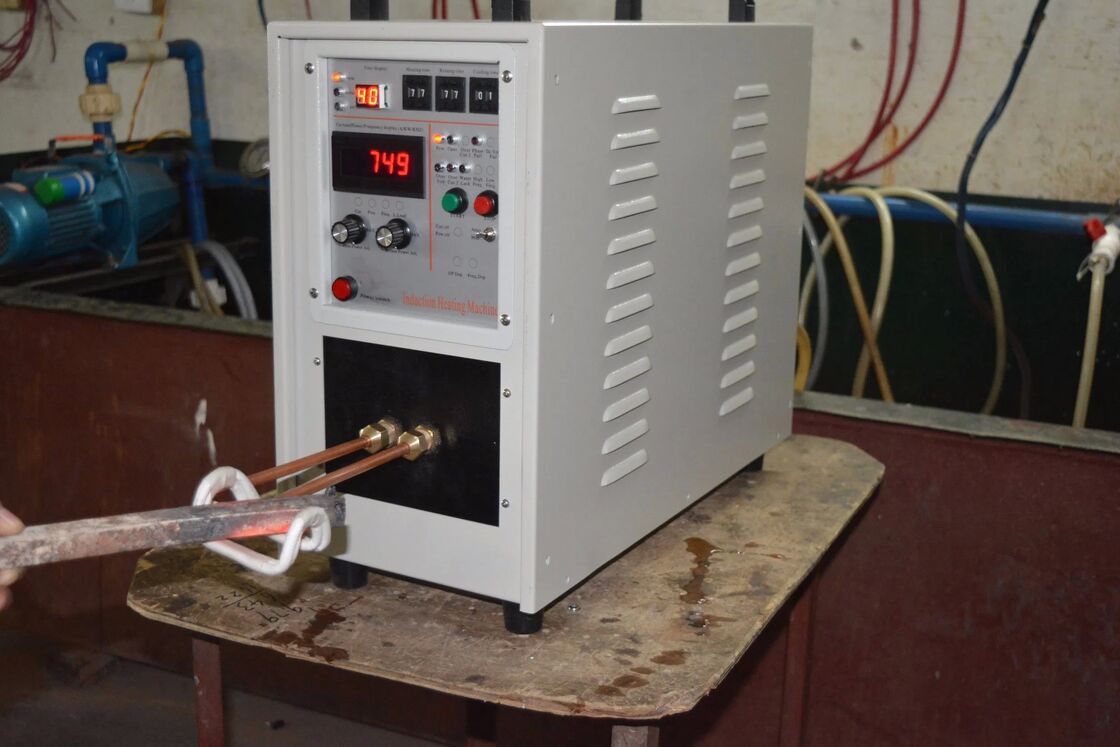

High Frequency Induction Heater (HF-15A/15AB)

MOQ:	1
Price:	600
Packaging Details:	PLY WOOD BOX package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Model NO.:

3*380V HF-15A/15AB IGBT Type

Structure:

Vertical Type

Brand:

OURUIDA

Application:

Heating, Quenching, Forging, Melting, Welding

Power:

15kw

Frequency:

30-100kHz

Work Voltage:

220V, 380V, 400V, 415V 440V, 480V

Transport Package:

Wooden Box

Specification:

CE, SGS, ISO

Trademark:

ORD

Origin:

China

HS Code:

8514400090

Production Capacity:

10, 000sets

Supply Ability:

1000

Highlight:

High Frequency Induction Heater HF-15A

Portable Induction Heater 15AB

Industrial Induction Heater with warranty

Product Description

Induction Heating Machine:

Advantage:

1 More than 21 years experience,stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOK, Matsushita,Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.

Main characteristics:

1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
7 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

Type	HF-15AB/15A
Work Power	3*380v/415v/440v/480v 50-60hz
The range of operating voltage	340-430AC
Output power	15KW
Input current	13A
Fluctuating frequency	30-100khz
Timing (Heat time,Retain time,Cool time)	1-99S
The flow rate of cooling water	0.15 Mpa 7.6L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	Mainparts:35Kg
Size	Main Parts:640280550mm

Pre-sale service:

1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:

1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:

1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
