Name: 40KW Induction Heating Machine HF-40AB with 100% Duty Cycle 30-80kHz Frequency and CE Certified
Brand: OURUIDA CO.,LTD
Price: 1 USD
Availability: InStock

MOQ:	1
Price:	1
Packaging Details:	ply wooden box
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Frequency:

30-80kHz

Working Condition:

Continuous

Transport Package:

Wooden Box

Specification:

CE, SGS, ISO

Trademark:

ORD

Origin:

China

HS Code:

8514400090

Production Capacity:

10, 000sets

Frequency Range:

30-80kHz

Output Power:

40KW

Input Current:

40A

Cooling Water Flow:

0.15 Mpa 10L/Min

Main Parts Weight:

42Kg

Transformer Weight:

32kg

Supply Ability:

1000/month

Highlight:

40kw induction heating machine

high frequency induction heater with cooling

induction heating machine for heat treatment

Product Description

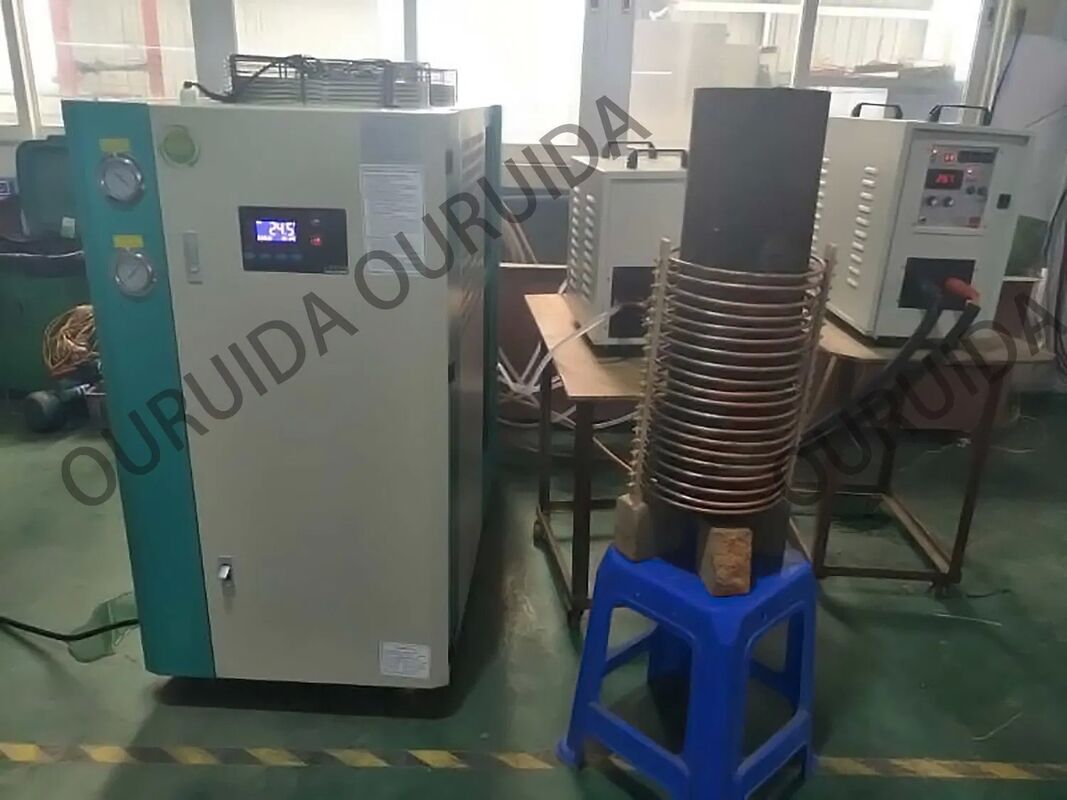

New Induction Heating Machine for Heat Treatment with 5P Cooling Water Machine 40KW

New induction heating machine for heat treatment with 5P cooling water machine 40KW

Induction Heating Machine Advantages

More than 20 years of experience, stable and good performance
CE certified
Cooperated with ZHOUDAFU, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner
Suitable for a large range of applications including heating, quenching, forging, melting, soldering and more

Main Characteristics

IGBT module and third-generation inverting technologies for higher reliability and lower maintenance cost
100% duty cycle, allowing continuous operation at maximum power output
Display of heating power, heating current and oscillating frequency
Simple installation that can be done by unprofessional personnel
Light weight design
Timer model advantages: Power and operating time for heating and retain periods can be preset separately to achieve simple heating curves, ideal for batch production to improve repeatability
Selectable constant current or constant power status for higher heating efficiency

Technical Specifications

Type	HF-40AB
Work Power	3*380v/415v/440v/480v 50-60Hz
Operating Voltage Range	340-430V AC
Output Power	40KW
Input Current	40A
Fluctuating Frequency	30-80kHz
Timing (Heat time, Retain time, Cool time)	1-99S
Cooling Water Flow Rate	0.15 Mpa 10L/Min
Water Temperature Protection Point	40°C
Duty Cycle	100% (40°C room temperature)
Weight	Main Parts: 42Kg, Transformer: 32kg
Size	Main Parts: 640280550mm, Transformer: 510260410mm
