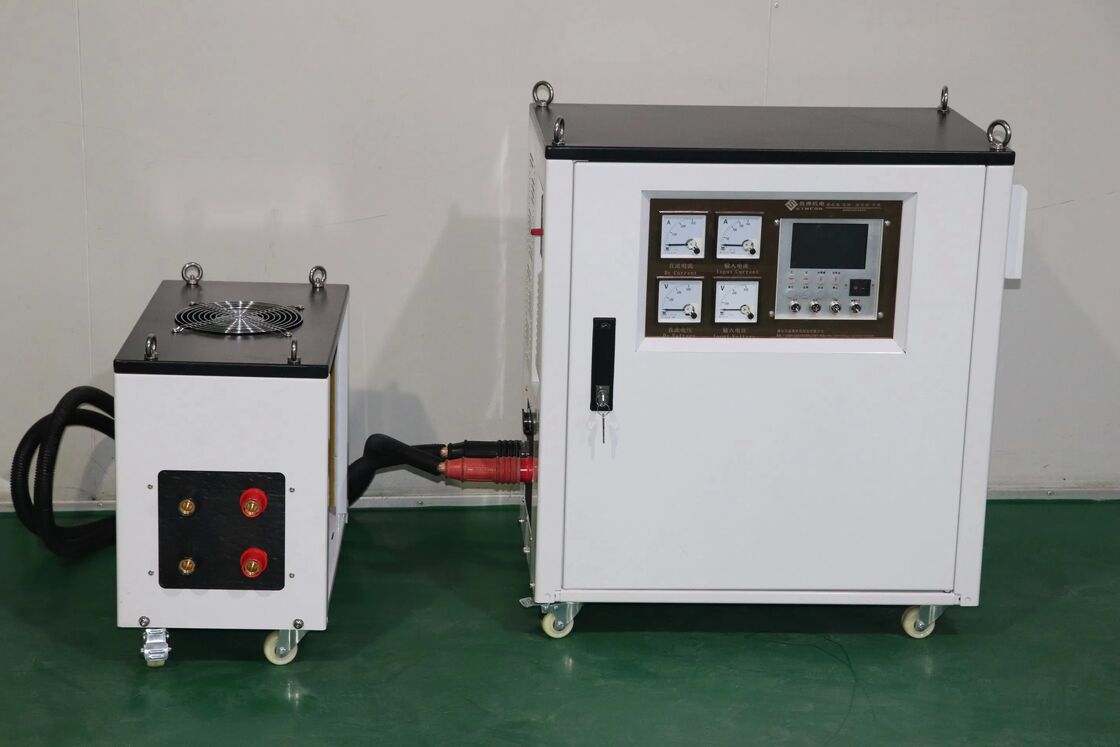

DSP-100kw Full Digital Air Cooled Induction Heating Equipment

Digital Type Air Cooled Induction Heating Machine (DSP-100KW)

Advantage:

1. More than 26 years experience, stable and goods performance
2. CE certificated
3. Digital Type
4. 8 Section heating

Main Characteristic:

1 Front Panel use the LCD Touch Screen, Key and Power Switch, all digital display, can use Switch Signal( Electrical frequency signal) to control the machine start and stop, and control the power via PLC.(RS232 or RS485 is options). Visual Human-computer Interface makes the operator feel more intimate and intuitive. Because of its abundant industrial interfaces, it has stronger and more flexible matching ability with robots, various automation equipment and remoe control (unmanned) devices.

2 Induction Heating Machine have remote control function and adopt digital circuit control, power regulation can be adjusted from 0% to 100% resolution, and digital PID temperature control module can be configured to set the target temperature of workpiece (infrared temperature measurement or thermocouple temperature measurement) automatically. The accuracy of temperature control is + 1'C for power regulation in heating process.

3 There are 5 working model, manual, timer, temperature, Constant temperarure, section heating model.

1. Manual, On and stop in the Switch
2. Timer, setting heating time, after reach the heating time, then stop. Fixed Temperature: Set the heating temperature that we need it, when the reach to the temperature that we need it, then stop the machine.
3. Constant Temperature: Adjust the heating power automatic to keep the same temperature to the workpiece.
4. Section Heating model, there are 8(S1-S8) options, each section can set the heating power, timer, temperature or constant temperarture, temperature or constant temperature just can choose any one. Power as 0 means no need to heat, put the paramater that you need to set, if not choose that function then show"--
5. There are 9 (P1-P9)programs, which can memorize 9 different workpiece in the machine, and select programs by clicking P(P1-P9). Can save much time if you have many workpiece in one machine, you can choose the programs (P1-P9) to fast working
