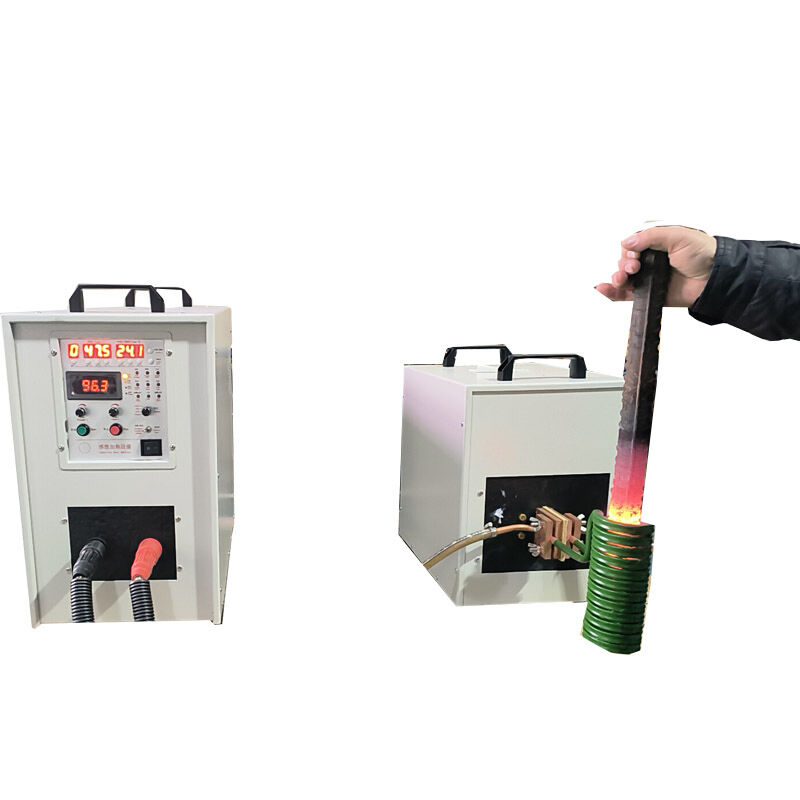

IGBT High Frequency Induction Heating Machine for Hardware Metals Processing (SF-40KW)

MOQ:	1
Price:	2000

Detail Information

Product Description

Detail Information

Certification:

CE, ISO, RoHS

Model NO.:

SF-40KW

Type:

Induction Heating Machine

Structure:

Vertical Type

Brand:

Ouruida

Application:

Heating, Quenching, Forging, Melting, Welding

Power:

40kw

Frequency:

20-50kHz

Working, Retail, Cooling Time:

1-99s

Work Voltage:

380V, 400V, 415V, 440V, 480V

Name:

Induction Heating Machine

Metal:

Copper,Brass, Steel, Alum, Iron, Bronze

Input Current:

60A

Water Flow Rate:

≥25L/Min

Cooling Water Pressure:

3-5bar

Start-up Mode:

Plane Start And Foot Switch

Key Accessories:

IGBT/ Mainboard

Advatange:

High Heating, Save Energy, Safety ....

Transport Package:

Wooden Box

Specification:

CE, ISO

Trademark:

ORD

Origin:

China

HS Code:

8514400090

Production Capacity:

10, 000sets

Highlight:

IGBT induction heating machine for metals

High frequency induction heater SF-40KW

Industrial metal processing heating machine

Product Description

IGBT High Frequency Induction Heating Machine for Hardware metals Processing (SF-40KW)

Induction heating is a process which is used to bond, harden or soften metals or other conductive materials. For modern manufacturing processes, induction heating offers an attractive combination of speed, consistency, control and energy efficiency.
When an alternating electrical current is applied to the primary of a transformer, an alternating magnetic field is created. According to Faraday's Law, if the secondary of the transformer is located within the magnetic field, an electric current will be induced.
In a basic induction heating setup, a power supply sends an AC current through an inductor (often a copper coil), and the part to be heated (the workpiece) is placed inside the inductor. The inductor serves as the transformer primary and the part to be heated becomes a short circuit secondary. When a metal part is placed within the inductor and enters the magnetic field, circulating eddy currents are induced within the part.

Applications:

1.Induction heat treatment :
A: Surface Hardening (Quenching): By rapidly heating a metal surface and then immediately cooling it, induction hardening creates a hard, wear-resistant outer layer while keeping the core tough and ductile. This is widely used for gears, shafts, crankshafts, and various tools.
B:Annealing and Tempering: Annealing softens metals to improve their machinability or relieve internal stresses, while tempering reduces brittleness after hardening. Induction heating allows for precise local annealing of parts like stainless steel strips or specific sections of a component.
2.Heating for Forming:
A:Hot Forging and Forming: It heats metal billets or workpieces to a temperature where they are plastic enough to be forged into shapes (e.g., hand tools, automotive parts, fasteners) using presses or hammers.
B:Hot Fitting: This involves heating a metal part (like a bearing) so that it expands, allowing for easy assembly onto another component. Upon cooling, the part contracts, creating a tight interference fit
