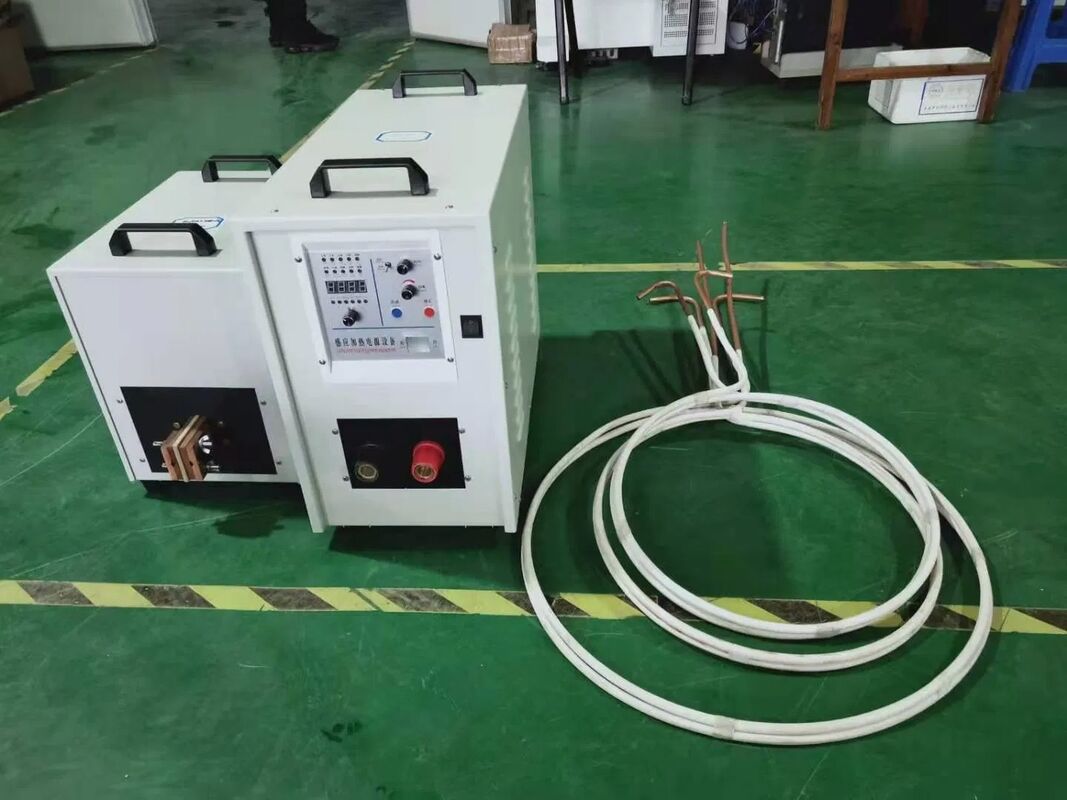

Induction Heating Machine for Annealing with Sf-60kw
  • name
  • name
  • name
  • name
  • name
  • name

Induction Heating Machine for Annealing with Sf-60kw

MOQ: 1
Price: 500
Detail Information
Product Description
Detail Information
Model NO.:
SF-60KW
Structure:
Vertical Type
Brand:
Ord
Frequency:
20-50kHz
Power:
60kw
Application Range:
Heating, Solder, Quenching, Annealing, Forging
Input Voltage:
220V, 380V, 400V,415V, 440V, 480V 50-60Hz
Package:
Plywood Box
Material:
Steel, Copper, Brass, Silver, Gold, Alum All Metal
Transport Package:
Wooden Box
Specification:
CE, SGS, ISO
Trademark:
ORD
Origin:
China
HS Code:
8514400090
Production Capacity:
10, 000sets
Highlight:

60kw induction heating machine

,

industrial induction annealing machine

,

SF-60kw induction heater

Product Description

Induction Heating Machine: (Induction heaitng machine for annealing with  SF-60kw )
Advantage:
1 More than 21 years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree a6ND ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 One main part match two transformers, use the change switch to control let which one transformer to work, which one is prepare, save the time, improve the working effciency.
6 Each transformers have two transformer ratios, which good for connect different induction coils to work different workpiece.

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
7 Constant current or constant power status can be selected accordingly to achieve higher heating efficiency; Induction Heating Machine for Annealing with Sf-60kw 0
Induction Heating Machine for Annealing with Sf-60kw 1

Induction Heating Machine for Annealing with Sf-60kw 2
Induction Heating Machine for Annealing with Sf-60kw 3
Induction Heating Machine for Annealing with Sf-60kw 4
Induction Heating Machine for Annealing with Sf-60kw 5
Induction Heating Machine for Annealing with Sf-60kw 6
Induction Heating Machine for Annealing with Sf-60kw 7
Induction Heating Machine for Annealing with Sf-60kw 8


Type SF-60KW
Work Power 3*380v/415v/440v/480v 50-60hz
The range of operating voltage 340-430V AC
Output power 60KW
Input current 90A
Fluctuating frequency 20-50khz
Timing 1-99S
The flow rate of cooling water 0.15 Mpa 11L/Min
Water temperature protection point 40centidegree
Duty cycle 100% (40degree room temperature)
Weight Mainparts:45Kg Transformer:38kg
Size Main Parts:640*350*550MM
Transformer: 510*270*440MM

 Induction Heating Machine for Annealing with Sf-60kw 9
Induction Heating Machine for Annealing with Sf-60kw 10

Induction Heating Machine for Annealing with Sf-60kw 11

Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
