Super Audio Induction Heating Machine Sf-160kw
  • name
  • name
  • name
  • name
  • name

Super Audio Induction Heating Machine Sf-160kw

MOQ: 1
Price: 7000
Detail Information
Product Description
Detail Information
Model NO.:
SF-160KW
Structure:
Vertical Type
Brand:
Ouruida
Application:
Heating, Quenching, Forging, Melting, Welding
Power:
160kw
Frequency:
20-50kHz
Flexible Connection:
2.5meters
Input Current:
240A
The Range Of Operating Voltage:
3*380V/415V/440V/480V 50-60Hz
Timing (Heat Time,Retain Time,Cool Time:
1-99s
Weight:
Mainparts:198kg Transformer:155kg
Main Parts:
850*600*950mm
Transformer:
650*450*600mm
Transport Package:
Wooden Box
Specification:
CE, SGS, ISO
Trademark:
ORD
Origin:
China
HS Code:
8514400090
Production Capacity:
10, 000sets
Highlight:

160kw induction heating machine

,

industrial audio induction heater

,

high-power induction heating equipment

Product Description

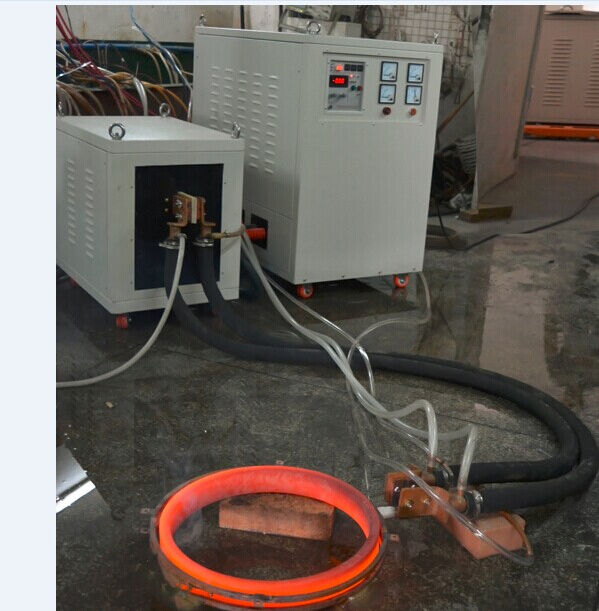

Super Audio Frequency Induction Heating Machine 160KW

Super Audio Induction Heating Machine Sf-160kw 0

Advantage:
1 More than ten years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, can match better different length induction coil


Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
Super Audio Induction Heating Machine Sf-160kw 1
Packing Photos :
Super Audio Induction Heating Machine Sf-160kw 2
Super Audio Induction Heating Machine Sf-160kw 3
Super Audio Induction Heating Machine Sf-160kw 4
Super Audio Induction Heating Machine Sf-160kw 5

 Type SF-160AB
 Work Power  3*380v/415v/440v/480v  50-60hz
 The range of operating voltage  340-430V AC
 Output power  160KW
 Input current  240A
 Fluctuating frequency  20-50khz
 Timing (Heat time,Retain time,Cool time)  1-99S
 The flow rate of cooling water  0.15 Mpa 25L/Min
 Water temperature protection point  40centidegree
 Duty cycle  100% (40degree room temperature)
 Weight  Mainparts:198Kg    Transformer:155kg
 Size Main Parts:850*600*950MM
Transformer: 650*450*600MM
Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
