IGBT High Frequency Induction Melting Furnace Equipment for Smelting The Gold, Silver, Copper, etc with Graphite and Quartz Crucible (HF-25KW)

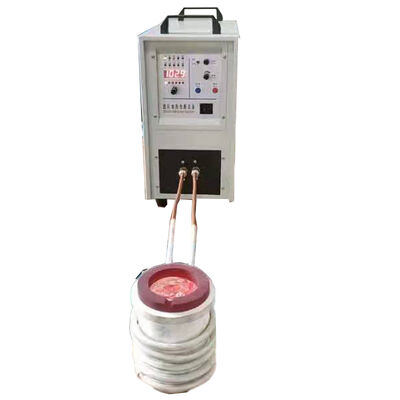

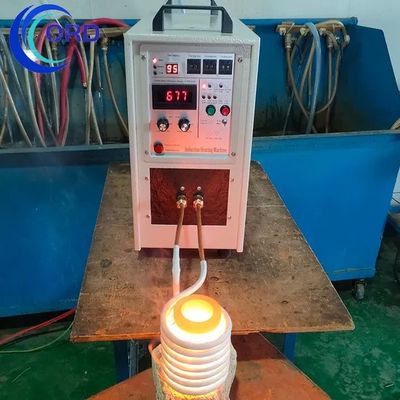

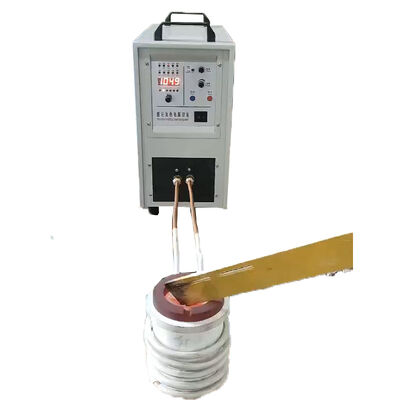

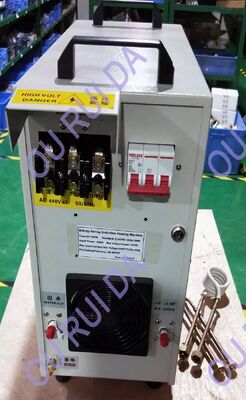

Large Image : IGBT High Frequency Induction Melting Furnace Equipment for Smelting The Gold, Silver, Copper, etc with Graphite and Quartz Crucible (HF-25KW)

Product Details:

Certification:	CE, ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	990

Contact Now

IGBT High Frequency Induction Melting Furnace Equipment for Smelting The Gold, Silver, Copper, etc with Graphite and Quartz Crucible (HF-25KW)

Description

Model NO.:	HF--25KW	Type:	Induction Heating Machine
Structure:	Vertical Type	Power:	25kw
Frequency:	30-80kHz	Heating Time:	1-100.9s
Work Voltage:	380V, 400V, 415V, 440V, 480V	Water Temperature Protection:	40c
Cooling Type:	Water Cooling	Input Current:	28A
Flow Rate:	0.15 Mpa 18L/Min	Duty Cycle:	100% (40degree Room Temperature)
Weight:	Mainparts:38Kg Transformer: 25	Size:	Main Parts:600350600MM Transformer: 550300500MM
Output Power:	25KW
Highlight:	IGBT induction melting furnace for gold , high frequency smelting furnace with graphite crucible , 25KW induction heater for copper silver

IGBT High Frequency Induction Melting Furnace Equipment (HF-25KW)

IGBT high frequency induction melting furnace equipment for smelting gold, silver, copper, and other metals with graphite and quartz crucible.

Key Advantages

Over 21 years of experience with stable and reliable performance
CE certified for quality assurance
Trusted by major companies including CHOW TAI FOOK, Matsushita, Foxconn, Media, Gree, and ZHIGAO Air Conditioner
Versatile applications including heating, quenching, forging, melting, and soldering
Two transformer ratios for optimal matching with different induction coil lengths
Siemens IGBT components
IXYS Bridge technology
DELIXI Switch components

Main Characteristics

Siemens IGBT module with third-generation inverter technology for higher reliability and lower maintenance costs
100% duty cycle allowing continuous operation at maximum power output
Digital display of heating power, heating current, and oscillating frequency
Easy installation suitable for non-professional personnel
Lightweight design for improved portability
Manual and automatic operation modes with temperature or time-based control

Technical Specifications

Type	HF-25KW
Work Power	3*380v/415v/440v/480v 50-60hz
Operating Voltage Range	340-430V AC
Output Power	25KW
Input Current	28A
Fluctuating Frequency	30-80khz
Timing	1-100.9S
Cooling Water Flow Rate	0.15 Mpa 18L/Min
Water Temperature Protection Point	40°C
Duty Cycle	100% (40°C room temperature)
Weight	Main parts: 38Kg, Transformer: 25Kg
Size	Main Parts: 600350600MM, Transformer: 550300500MM

Pre-sale Service

Recommend the most suitable machine based on customer requirements
Inquiry and consulting support
Sample testing support
Factory viewing opportunities

In-sale Service

Manufacturing according to relevant technical standards
Comprehensive run testing per equipment regulations
Strict quality checks before delivery
Guaranteed on-time delivery

After-sale Service

Warranty: 18 months from delivery date or 12 months from receipt date
Free replacement of all parts within warranty for non-artificial faults
Technical support for quality issues beyond warranty period
Lifetime cost pricing for materials and spare parts
Extended quality assurance and operation guarantees
