Production IGBT Induction Melting Equipment with 2kg Furnace of Melting Gold and Silver etc,

Large Image : Production IGBT Induction Melting Equipment with 2kg Furnace of Melting Gold and Silver etc,

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	600

Contact Now

Production IGBT Induction Melting Equipment with 2kg Furnace of Melting Gold and Silver etc,

Description

Model NO.:	HF-15KW	Power:	15kw
Frequency:	30-100kHz	Capacity:	2kg
Input Current:	36A	Work Power:	220V, 230V, 240V 50-60Hz
Operating Voltage:	200-260VAC	Weight:	36kg
Size:	640280550mm	Cooling Water Pressure:	4-6bar
Water Flow Rate:	≥25L/Min	Output Power:	15KW
Fluctuating Frequency:	30-100khz	Water Temperature Protection:	40centidegree
Duty Cycle:	100%
Highlight:	IGBT induction melting equipment , 2kg gold melting furnace , high frequency silver induction heater

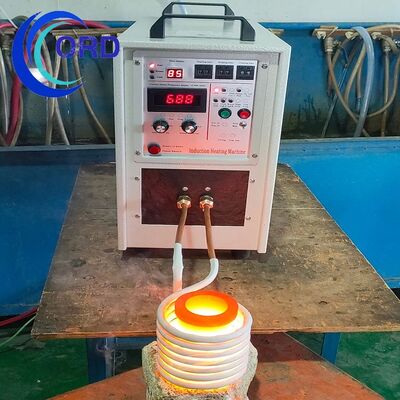

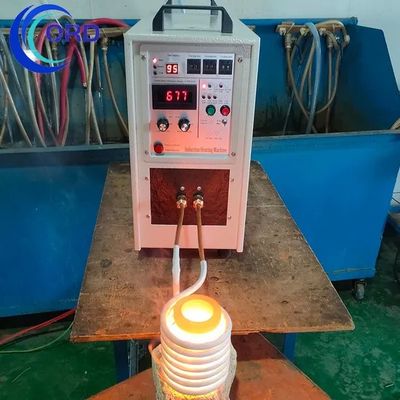

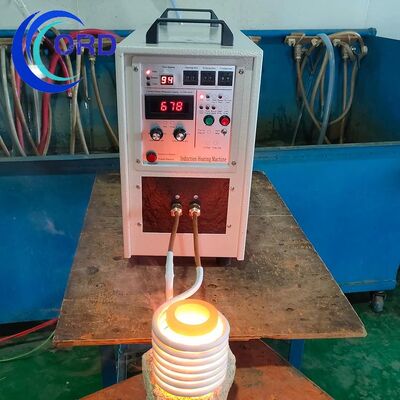

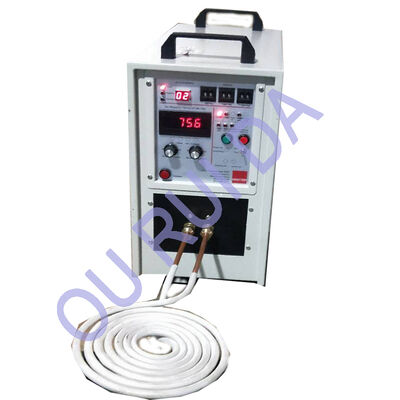

Production IGBT Induction Melting Equipment with 2kg Furnace

Professional IGBT induction melting equipment featuring a 2kg furnace capacity, designed for melting gold, silver, and other precious metals with exceptional performance and reliability.

Key Advantages

Over 25 years of industry experience ensuring stable and reliable performance
CE, ROHS, and SGS certified for quality assurance
Trusted by major companies including CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree, and ZHIGAO Air Conditioner
Versatile applications: heating, quenching, forging, melting, soldering, and more

Main Characteristics

Siemens IGBT module with third-generation inverting technology for higher reliability and lower maintenance costs
100% duty cycle allows continuous operation at maximum power output
Real-time display of heating power, heating current, and oscillating frequency
Easy installation suitable for non-professional personnel
Lightweight design for enhanced portability
Timer model allows preset power and operating time for heating and retain periods, ideal for batch production and improved repeatability

Packing Details

Induction Melting Furnace Specifications

Type	HF-15AB/15A
Work Power	220V, 230V, 240V 50-60Hz
Operating Voltage Range	200-260VAC
Output Power	15KW
Input Current	36A
Fluctuating Frequency	30-100kHz
Timing (Heat/Retain/Cool)	1-99S
Cooling Water Flow Rate	0.15 Mpa 7.6L/Min
Water Temperature Protection	40°C
Duty Cycle	100% (40°C room temperature)
Weight	Main Parts: 35Kg
Size	Main Parts: 640280550mm

Pre-Sale Services

Recommend the most suitable machine based on customer requirements
Comprehensive inquiry and consulting support
Sample testing support available
Factory viewing opportunities

In-Sale Services

Strict manufacturing according to relevant technical standards
Comprehensive run testing following equipment test regulations
Thorough quality checks before delivery
Guaranteed on-time delivery

After-Sale Services

Warranty: 18 months from delivery date or 12 months from receipt date
All parts free within warranty period for non-artificial faults
Replacement parts provided for any design, manufacture, or procedure quality issues
Maintenance technician support for major quality problems beyond warranty at favorable pricing
Lifetime cost pricing for materials and spare parts used in system operation and maintenance
Additional quality assurance and operation guarantee commitments
