Factory Price IGBT High Frequency Induction Smelting Machine for 8kg Furnace Melting The Cooper, Brass, Steel, Iron / Cast Iron. Broze etc Hf-25kw

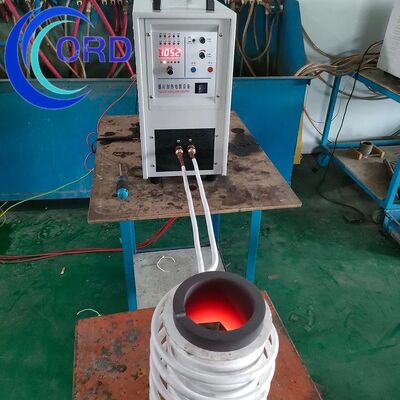

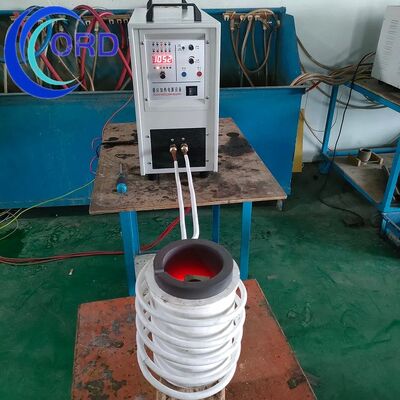

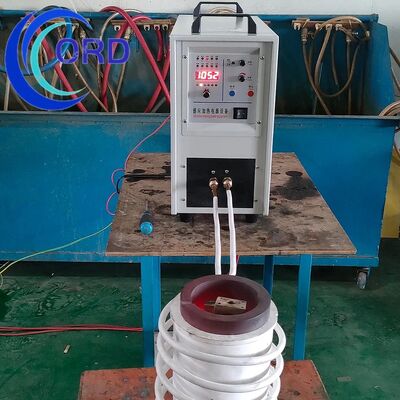

Large Image : Factory Price IGBT High Frequency Induction Smelting Machine for 8kg Furnace Melting The Cooper, Brass, Steel, Iron / Cast Iron. Broze etc Hf-25kw

Product Details:

Certification:	CE, ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	990

Contact Now

Factory Price IGBT High Frequency Induction Smelting Machine for 8kg Furnace Melting The Cooper, Brass, Steel, Iron / Cast Iron. Broze etc Hf-25kw

Description

Model NO.:	HF-25KW	Power:	25kw
Frequency:	30-80kHz	Heating Time:	1-100.9s
Work Voltage:	380V, 400V, 415V, 440V, 480V	Water Temperature Protection:	40c
Cooling Type:	Water Cooling	Structure:	Vertical Type
Input Current:	28A	Cooling Water Flow:	0.15 Mpa 18L/Min
Duty Cycle:	100% (40degree Room Temperature)	Weight:	Mainparts:38Kg Transformer: 25
Size:	Main Parts:600350600MM Transformer: 550300500MM	IGBT Module:	Siemens
Bridge:	IXYS
Highlight:	8kg induction smelting machine , high frequency induction heater for brass , IGBT induction furnace for steel

Factory Price IGBT High Frequency Induction Smelting Machine for 8kg Furnace

Professional induction smelting machine designed for melting copper, brass, steel, iron, cast iron, bronze and other metals. Model: HF-25KW

Key Advantages

Over 21 years of manufacturing experience ensuring stable performance
CE certified for quality and safety standards
Trusted by major companies including CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air Conditioner
Versatile applications: heating, quenching, forging, melting, soldering and more
Dual transformer ratios for optimal compatibility with different induction coil lengths
Siemens IGBT components
IXYS Bridge technology
DELIXI Switch components

Main Characteristics

Siemens IGBT module with third-generation inverting technology for higher reliability and lower maintenance costs
100% duty cycle allowing continuous operation at maximum power output
Digital display of heating power, heating current and oscillating frequency
Easy installation suitable for non-professional users
Lightweight design for improved portability
Manual and automatic operation modes with temperature or time-based control

Technical Specifications

Type	HF-25KW
Work Power	3*380v/415v/440v/480v 50-60hz
Operating Voltage Range	340-430V AC
Output Power	25KW
Input Current	28A
Fluctuating Frequency	30-80khz
Timing	1-100.9S
Cooling Water Flow Rate	0.15 Mpa 18L/Min
Water Temperature Protection	40°C
Duty Cycle	100% (40°C room temperature)
Weight	Main parts: 38Kg, Transformer: 25Kg
Size	Main Parts: 600350600MM, Transformer: 550300500MM

Service Support

Pre-sale Service

Professional machine recommendations based on customer requirements
Comprehensive inquiry and consulting support
Sample testing assistance
Factory viewing arrangements

In-sale Service

Strict manufacturing according to technical standards
Comprehensive run testing following equipment regulations
Thorough quality checks before delivery
Guaranteed on-time delivery

After-sale Service

Warranty: 18 months from delivery date, 12 months from receipt date
Free replacement of all parts within warranty period for non-artificial faults
Technical support for quality issues occurring after warranty period
Lifetime cost pricing for materials and spare parts
Extended quality assurance and operation guarantees
